Concept Probing in Large LLMs

Highlight. Six questions, one experiment. Across three scales (Phi-2 2.7B, Qwen-2.5-3B, Qwen-2.5-14B) × two problems (farmer max-area, ball-drop impact velocity), we ran four layer-wise probes on matched pairs of correct and incorrect completions from identical prompts. Relations are linearly decodable from layer ¼ onward at every scale (P3 macro-F1 = 0.95–1.00). Role invariance builds mid-depth and strengthens with scale (rename cosine peak: 0.63 at Phi-2 → 0.88 at Qwen-3B → 0.93 at Qwen-14B) but regresses at the output in every cell where the test applies — token identity wins over role by up to −0.17 at 14B. Variables form no cluster structure at any depth in any cell — neither within-variable nor across-category — so concept information is carried by linear directions, not Euclidean separation. Most importantly: all three pre-registered representational failure hypotheses are rejected — the residual stream’s variable, role, and relation structure are essentially identical on correct and incorrect samples. Errors live downstream of the residual stream. And the behavioral name-bias Qwen-3B shows on the farmer problem is a decoding-stage artefact, not a representation one.

Setup — the matched-pair rig

Three frozen models (Phi-2 2.7B / 32 layers, Qwen-2.5-3B / 36L, Qwen-2.5-14B-Instruct / 48L) on two problems: farmer (maximize rectangle area given perimeter P) and ball-drop (impact velocity from height h, g = 9.8). For each (model, problem) cell, 200 paraphrased prompts vary variable names, role identity, domain, and numeric values. Sample K=32 completions per prompt at T=0.7, top-p=0.95, max-new-tokens=512. Label each sample as correct (final numeric claim matches analytical gold within tolerance — 1% farmer, 2% ball), incorrect (extractable number but wrong), or off-topic (no extractable final claim).

A matched pair is one correct + one incorrect sample drawn from the same prompt’s 32 samples. For each pair we teacher-force (prompt + generated tokens) and capture all-layer residual streams. The correct side and the incorrect side of each pair come from the same prompt, same model, same weights — only the sampled trajectory differs, so any mechanistic difference localizes where errors arise. Spec thresholds: ≥ 30 pairs floor, ≥ 60 target.

Four probes, each run twice per cell (once on correct residuals, once on incorrect):

• P1 — within-variable silhouette. k-means on residuals at variable-mention positions, scored against gold role labels {length, width, area, param} (farmer) or {height, velocity, g} (ball). Spec expected emergence past 0.3 at a middle layer.
• P1b — across-category silhouette. 4-class alternative: {variable, operator, number, other}. Backup hypothesis — maybe variables pool as a shared category rather than separating by role.
• P2 — cosine invariance. Cosine between per-variable mean residuals across paraphrase pairs differing in one axis: rename (same role, different letter), role-swap (same letter, different role — farmer only), domain-swap (same role+letter, different scenario).
• P3 — linear relation decoder. 5-fold GroupKFold logistic regression at operator positions, labels {perimeter-eq, area-eq, bound} (farmer) or {kinematic-eq, sqrt-form} (ball). Reports macro-F1.

Q1. Do models represent relations between variables?

Yes — in every cell, on every side, at every scale.

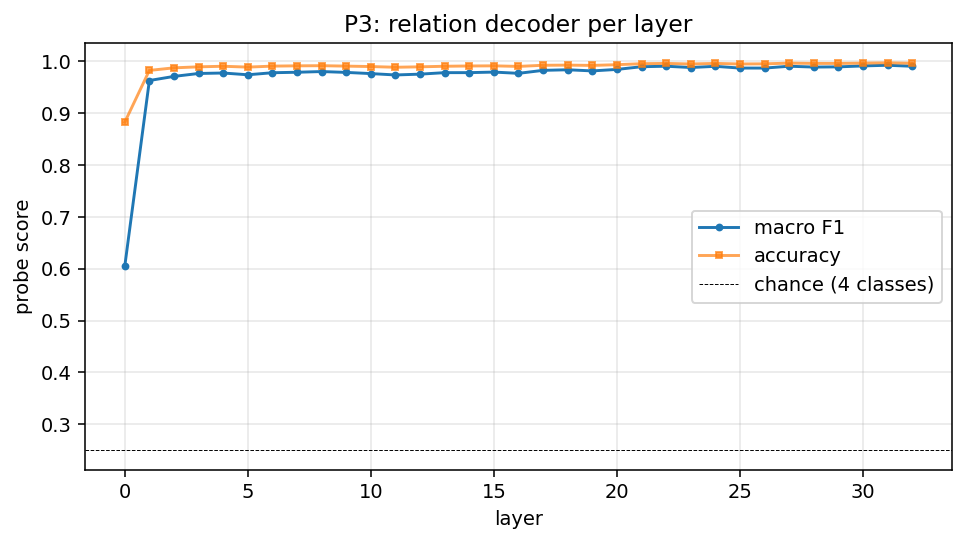

P3 saturates at macro-F1 ∈ [0.95, 1.00] from layer ¼ onward, on both correct and incorrect samples. The residual carries a specific linear direction per relation type that the decoder reads off cleanly regardless of whether the final answer is right.

Q2. Are symbols represented as role-invariant concepts?

Partially. Role abstraction is built mid-depth and then partially undone at the output.

Concept-consistent prediction: cos(rename) > cos(role_swap) — the length-variable direction should be the same whether the letter is L or x. Token-consistent prediction: the opposite.

Two scale-invariant observations:

1. Mid-depth role invariance builds through the network. Rename cosine rises from near-zero at L0 to 0.63–0.93 at mid-to-late layers. Scale raises the peak: Phi-2 0.63 → Qwen-3B 0.88 → Qwen-14B 0.93 on ball.
2. Output layer: token identity reasserts. Wherever role-swap is measured, cos(rename) < cos(role_swap) at the final layer. The letter beats the role. And the gap widens at 14B on farmer (−0.17), so the regression is not a small-model artefact.

Q3. Do variables form distinct clusters?

No — at any depth, in any cell. Neither within-variable nor across-category.

Within-variable silhouette (P1):

Silhouette peaks at L0 (tokenizer artefact) and declines with depth in every cell except qwen14b_ball, which rises slightly to L¼ before declining. Variables are most distinguishable at input, not after computation.

Across-category silhouette (P1b):

Same shape: peaks at L0, declines with depth. Phi-2 farmer goes negative mid-network — variable / operator / number / other categories are less coherent than a random partition at those layers. Neither cluster test emerges anywhere.

Synthesis. P1 + P1b rule out distance-separable clusters. P2 + P3 show clean directional structure. Concept information is carried by linear directions in residual space, not by distance-separable clusters. Reading concepts requires cosine and linear-probe tools, not k-means and silhouette.

Q4. Where do errors come from — representation or downstream?

Downstream of the residual stream. Every probe was run twice per cell, once on correct residuals and once on incorrect. Pre-registered failure hypotheses from probes_design.md:

Concrete gaps per cell:

The residual stream’s variable, role, and relation representations are essentially identical on correct and incorrect runs. The two partial exceptions both live at the largest cell: qwen14b_ball’s P1 gap of 0.09 is the first faint hint of a representational error signature at 14B on one problem, and qwen3b_ball’s P2 rename gap of 0.14 is notable but lives inside the 46-pair labeler-artefact cell (see caveats).

Q5. Do the findings hold at scale?

Yes for Q1, Q2, Q4; one partial deviation for Q3 on one cell.

Scale strengthens mid-depth concept (rename peak rises) but does not fix the output regression. qwen14b_ball is the one cell showing any 14B-specific deviation.

Q6. Does behavioral name-bias reflect representational name-bias?

No. Behavioral name-bias is a decoding-stage artefact. One cell suffices — qwen3b_farmer.

qwen3b_farmer had the largest behavioral name-bias and the cleanest mechanistic rename invariance. If the representation were name-bound, P2 rename would be low. It is 0.88. The name-bias lives downstream of the residual stream — in how the model commits to surface tokens at decoding time, not in how it represents the problem internally. The same pattern replicates at 14B. This was a conditional the spec pre-registered; it triggered exactly as written.

Caveats

qwen3b_ball headline numbers are a labeler artefact. Visible: 1.1% correct, 46 / 200 matched, 70% off-topic. This is not a Qwen-3B failure on ball-drop. 82% of “off-topic” samples contain a correct \boxed{X} that the labeler regex misses; 65% hit the 512-token cap. Qwen emits answers in \[ \boxed{49.5} \] m/s form; the labeler required v = N or m/s suffix. Mechanistic probes still return clean signals on the 46 pairs retained (P3 F1 = 1.00). A labeler patch plus a longer max_new_tokens would lift visible matches past 150.

Phi-2 off-topic is 100% truncation. Every Phi-2 off_topic sample hits the 512-token cap (farmer 2617/2617, ball 473/473). Phi-2 is verbose; the final numeric claim doesn’t fit. Correct / incorrect counts are floors, not ceilings.

What this gives me — and what it points to next

The concept-level picture is settled for this problem class at this scale range: relations are linear, variables are not clusters, roles abstract mid-depth but regress at output, and the residual stream’s representation of the problem is essentially identical on failing and succeeding runs. Whatever breaks must live downstream — in MLP arithmetic, value binding, or the final decoding step. Four next moves argued for by these findings:

1. Localize the downstream failure. Layer-wise logit-lens on the final 4 layers, restricted to incorrect runs, should identify where a correct residual turns into a wrong output token.
2. Causal patching correct → incorrect at the candidate error layer. If patching the residual at layer ℓ flips the emitted number, the corruption step sits at ℓ.
3. Labeler patch + re-label for qwen3b_ball and qwen14b_ball. Text-only, ~1 min compute; restores ≥ 150 matched pairs per cell for downstream stages.
4. SAE feature discovery targeted at the late-layer corruption point, not abstract “concept features.”
