LLM Internals for Math Reasoning

Highlight. Running Fourier probes on pre-trained Pythia, Qwen2.5, and SmolLM2 reveals weak but real structure — concentrations 3–5× above random — and this structure correlates almost perfectly with behavioral accuracy (r = 0.99 on Qwen). But the same additive Fourier basis is used for both addition and multiplication: representational structure transfers from toy grokking to real LLMs; algorithmic basis differentiation does not. Fine-tuning a small LLM into toy-grokked representation levels still tops out at 20% generation accuracy — the embeddings move, the rest of the network doesn’t. Across seven stages I traced where arithmetic commits, how prompt scaffolds unlock latent capability, why understanding — not computation — is the binding constraint for word-problem reasoning at this scale, and finally how relation structure scales up cleanly while errors keep living downstream of the residual stream.

Stage 1 — Probing: do pre-trained LLMs use the Fourier structure at all?

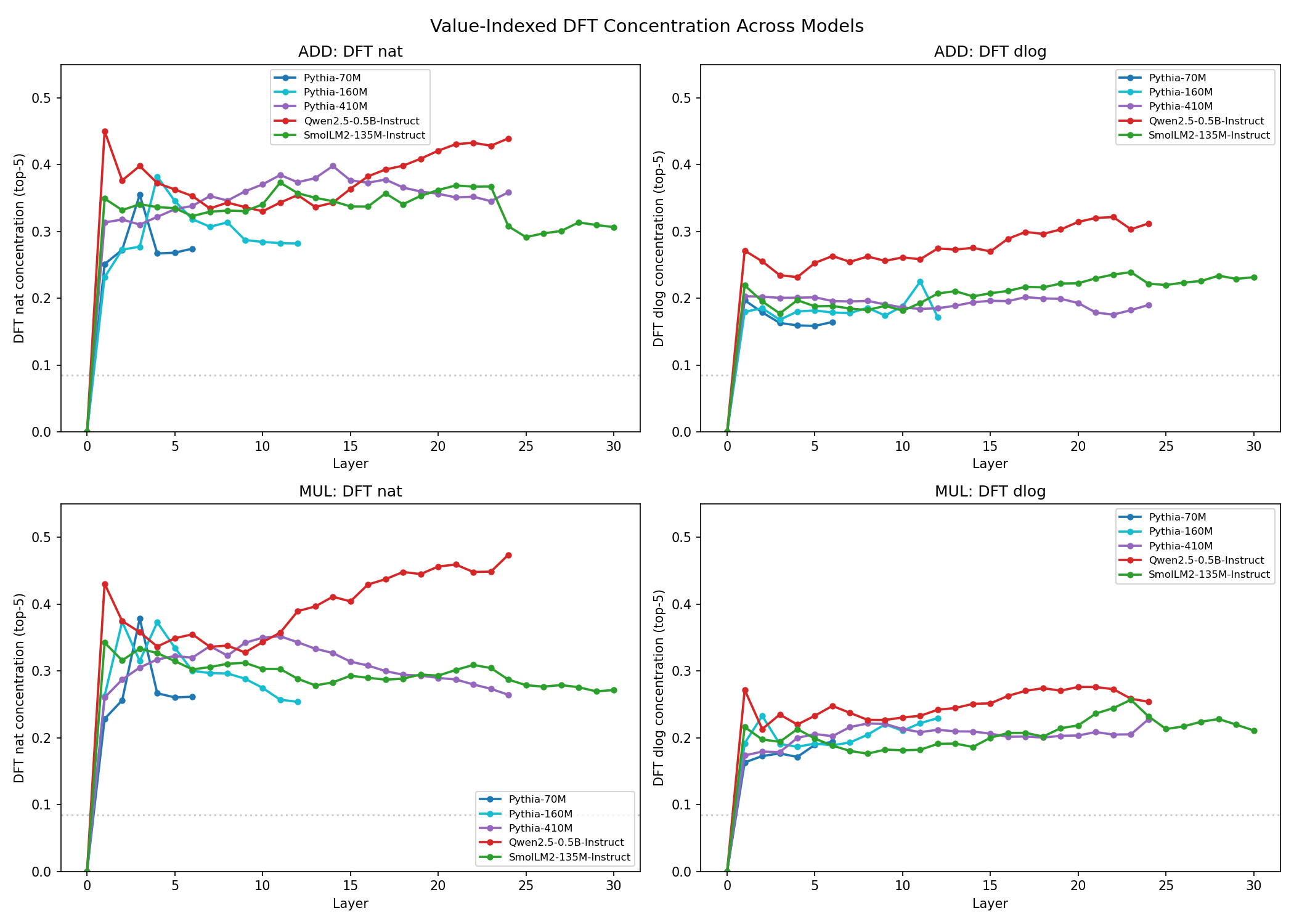

Linear probes on frozen Pythia (70M–410M), Qwen2.5-0.5B-Instruct, and SmolLM2-135M-Instruct predict (a OP b) mod 59 from token embeddings and residual streams. Value-indexed DFT analysis measures additive (natural) and multiplicative (discrete-log) Fourier structure per layer.

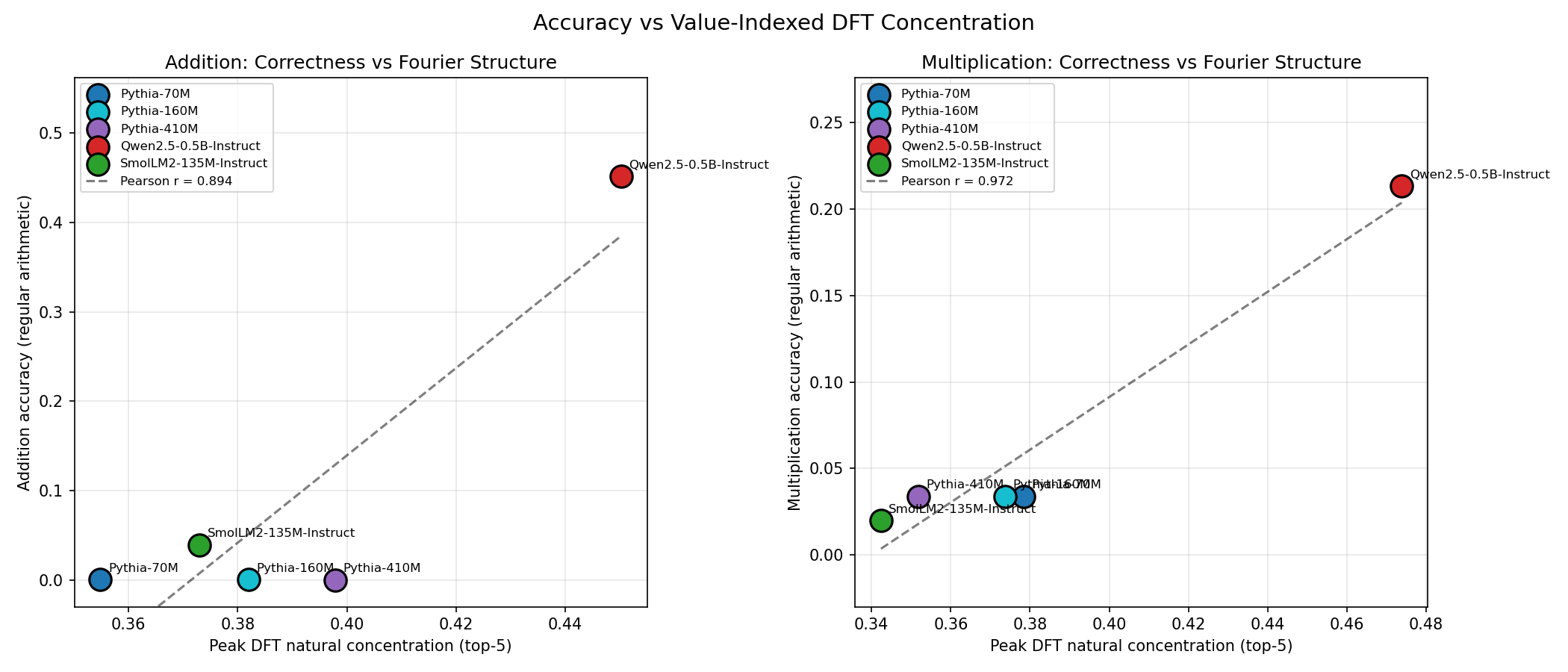

DFT concentration correlates r = 0.994 with addition generation accuracy on Qwen, r = 0.972 on multiplication.

The big negative finding: LLMs use additive DFT for both addition and multiplication, unlike toy models that grok into distinct bases (natural for +, discrete-log for ·). Structural dimensionality transfers; operation-specialized representations do not.

Fine-tuning Pythia-70M for 60 epochs with the Fourier surrogate loss (λ=1) pushes DFT-nat from 0.38 to 0.957 — toy-grokked levels — but behavioral accuracy caps at 20.3% before collapsing. The manifold is reachable; the rest of the network isn’t wired to use it.

Stage 2 — Multi-token: where does arithmetic actually commit?

Qwen reaches 41% generation accuracy on addition, but a logit lens reads only 11% at the = token. So where is the answer committed? Position-conditioned teacher-forced probing finds the compute offset — the first non-trivial position where accuracy drops below 95%.

Arithmetic commits not at = but at the position of the first answer digit — offset 0 for Pythia (single-token numbers) and offset 1 for Qwen/SmolLM (digit-split tokenizers). Compute-offset accuracy correlates r = 0.993 with generation accuracy.

Two surprises: (i) chain-of-thought slightly hurts plain arithmetic (37% → 32% strict) by fragmenting the answer stream. (ii) Carries are handled holistically (carry 47.3% vs no-carry 42.3% on 3,481 Qwen pairs) — not digit-by-digit as a naive independence hypothesis would predict.

Stage 3 — Tool: prompting scaffolds unlock latent capability

Six template variants (plain, marker-only, chat, CoT tags, few-shot, tool-mention) tested on p=59 addition and multiplication, with Pythia-base as an instruction-tuning-free control.

Few-shot examples (T4) and native chat format (T2) unlock Qwen to 91–100%; Pythia stays near zero across every template. Instruction tuning is a floor, not a ceiling. Structural priming lifts residual-stream DFT-nat by +15pp (T0 0.48 → T4 0.63). Multiplication is harder — 86% vs 100% for addition — and all failures on products ≥ 696 are middle-digit interpolation errors.

Stage 4 — Opt: computation vs. comprehension in optimization

Four-stage reasoning pipeline — extract → formulate → derive → code — on Qwen2.5-0.5B / 1.5B / 3B across 15 optimization word problems, with Lean 4 verification of derived claims.

Computation scales steeply with size (10% → 90% S4 Code from 0.5B to 3B); understanding plateaus. Three independent failure modes on the farmer problem: omission (misses L > 0, L ≤ 50), fabrication (invents x > y), incompleteness (weak global-optimality proofs). Given the equation directly, Qwen-3B codes the solution 100% of the time; given the word problem, only 2 of 8 formulations are correct. Comprehension of implicit constraints — not mathematical ability — is the binding constraint.

Stage 5 — Form-opt bench: measuring the gap itself

Designed a 3-dimensional benchmark over 20 problems × 4 tiers with explicitly annotated implicit constraints, fabrication traps, and consistency checks. Scoring axes: D1 — implicit condition recall; D2 — fabrication rate; D3 — internal contradiction. Positioned as a response to the 18pp gap between 90% solve accuracy and 72% formulation quality found in Stage 4. Implementation in progress.

Stage 6 — Reason-gnd: grounding via domain axioms

Three optimization problems (kinematics, farmer, cost) in two conditions: ungrounded (text only) and grounded (text + domain axioms: governing equations, constants, physical constraints). Gold standard via quantifier elimination in SymPy. Seven models from 0.5B to 3B.

Grounding improves constraint recall by +20% on average but solve accuracy is flat. Phi-2’s effect is striking — 0/3 → 2/3 solve, +73% recall — while Qwen2.5-3B paradoxically degrades, suggesting larger models already know the domains and external axioms interfere. No model exceeds 73% recall; derived bounds (L ≤ 50, t ≤ 4.08) are consistently missed — no bound tightening happens in any condition.

Phi-2 residual probing in this stage sets up the handoff to the concept-probing thread: relation structure is linearly decodable at macro-F1 ≈ 0.98 from layer 4 onward; variable binding shows role-swap cosine 0.80 vs. rename cosine 0.48 (lexical encoding); an α = 4 steering intervention at layer 8 lifts perimeter-equation emission from 0/20 to 4/20; at layer 16 the effect is a dead zone.

Stage 7 — Concept probing at scale (Phi-2, Qwen-3B, Qwen-14B)

The Phi-2 probe of Stage 6 is scaled to a 2 × 3 cell matrix, adding Qwen-2.5-3B and Qwen-2.5-14B-Instruct and switching to a cleaner contrast: correct vs. incorrect on identical grounded prompts, with both classes generated from the same input at T=0.7 to isolate reasoning-side variation. Four probes (within-variable silhouette, across-category silhouette, rename/role-swap/domain-swap cosine invariance, linear relation decoder) run on each cell, on both sides of the correctness split, layer by layer.

Three findings survive the scale-up:

• Relations are linear. The relation decoder saturates at macro-F1 ∈ [0.95, 1.00] from the quarter-depth layer onward in every cell, on both correct and incorrect samples, at every scale. Encoding is by explicit linear directions in the residual — not clusters.
• Variables are not Euclidean clusters. Both the within-variable and the across-category silhouette probes peak at L0 and decline with depth in every cell (with qwen14b_ball the one mild exception mid-layer). Concept information is carried in the same linear-direction regime as relations, not in geometric separation.
• Output-layer rename regression is scale-invariant. Rename invariance mid-depth strengthens with scale (Phi-2 0.63 → Qwen-3B 0.88 → Qwen-14B 0.93 on ball), but at the final layer cos(rename) < cos(role_swap) in every cell with a role-swap axis, and the gap actually widens at 14B on the farmer problem (−0.11 → −0.17).

All four pre-registered representational failure hypotheses are rejected across all six cells: correct-vs-incorrect gaps are P1 ≤ 0.09, P2 rename ≤ 0.04, P3 F1 ≤ 0.03. One 14B cell (qwen14b_ball, P1 gap 0.09) is the only faint hint that representational error signatures might exist at this scale. Errors live downstream of the residual stream, not in whether the model has the concept — the computation–comprehension gap from Stage 4 meets the representation story from Stage 6 and closes on the same verdict. Detailed numbers and figures in Concept Probing in Large LLMs.

What this gives me

Pre-trained LLMs carry the same kind of structure that grokked toy models use, detectable with the same probes, correlating with behavior the same way. Specialization, scaffolding dependence, and the computation–comprehension gap all show up at scale, and the Stage-7 scale-up says that even at 14B the residual-stream representation of the problem survives on failing runs. The next move is to push past the residual into MLPs, attention heads, and the decoding path — the downstream site where all the remaining error mass must live.
